Propane Tanks

Purpose

To secure propane tanks.
Caution
Large propane tanks will expand and contract. This may stress the tank wall or seismic connections.
Consult a structural engineer and your propane supplier for assistance.
Note

  • Store gas cylinders in a separate area.
  • Store cylinders away from people and exits.

Recommendation

Propane Tank
Source: Noson, Perbix, SSD

Install expansion bolts through existing brackets or provide steel pipe bollards. Steel pipe bollards are recommended for all large tanks.

Supplies Required

  • Reinforcing steel—No. 4
  • Expansion bolts
  • Concrete (2,000 psi minimum)
  • A36 steel pipe—6″ diameter

Installation

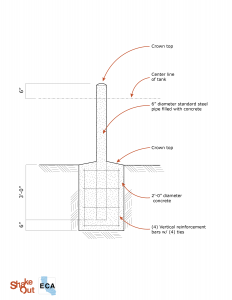

Steel Pipe Bollard
Source: Noson, Perbix, SSD

Expansion Bolt

  1. Provide new footings (if none exist) at each bracket.
  2. Install expansion bolts in existing bracket holes. Fill the hole with the largest diameter bolt possible.

Steel Pipe Bollard

  1. Provide bollards at one-quarter points on two sides of tank.
  2. See steel pipe bollard figure for dimensions.

Note
Provide flexible supply line connections.
